Script Tutorial Request for sc HTML, INIT/Terminate

Post by SkyFrontier »

Hi.
Can someone please provide a tutorial displaying how to deal with sc HTML and "Initialize and Terminate" (Help file: Multi-line Scripts and Multi-Scripts, rtfm "idh_scripting.htm#idh_scripting_multi";), step by step, features show-off?

Thanks in advance.
New User's Ref. Guide and Quick Setup Guide can help a bit! Check XYplorer Resources Index for many useful links!
Want a new XYperience? XY MOD - surfYnXoard
-coz' the aim of computing is to free us to LIVE...

Stefan
Posts: 1360
Joined: 18 Nov 2008 21:47
Location: Germany, EU

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by Stefan »

Here are some basics shown at an Example Framework for the XYplorer-script HTML() function

http://www.xyplorer.com/xyfc/viewtopic. ... 856#p49856


Which questions do you still have?



.

SkyFrontier
Posts: 2341
Joined: 04 Jan 2010 14:27
Location: Pasárgada (eu vou!)

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by SkyFrontier »

Everything.
I've never got the codes to return nothing when I've adapted some HTML codes I got here on forums. Once I failed to produce a simple 2 buttons, 3 input lines code then I left the whole thing aside. And I know I could do more with such a knowledge, as over time I've been capable of producing very complex scripts - and simple solutions for complex problems.
New User's Ref. Guide and Quick Setup Guide can help a bit! Check XYplorer Resources Index for many useful links!
Want a new XYperience? XY MOD - surfYnXoard
-coz' the aim of computing is to free us to LIVE...

Stefan
Posts: 1360
Joined: 18 Nov 2008 21:47
Location: Germany, EU

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by Stefan »

Then step by step:
html()
Displays an HTML formatted string.

Syntax
html([html], [width=600], [height=400], [caption=XYplorer])

BASIC code:

Code: Select all

$myXYVariable = html('
						    <HTML>

						    <FORM method="GET" action="xys:">


						    </FORM>

						    </HTML>

					 ', "700", "630", "my Windows Title");
$myXYVariable is a XY var to store the result of this XY html() command.

html(' ... ', "700", "630", "my Windows Title"); is the XYplorer command html() itself.

<HTML><FORM method="GET" action="xys:"> ... </FORM></HTML> is the basic HTML code to build the GUI and the function in it.





The key to let this work
is the construction of the FORM tag: FORM method="GET" action="xys:"
in combination with an <INPUT type="submit" button. (for how to use a link see below at the end)


For example:

Code: Select all

$myXYVariable = html('
						    <HTML>

						    <FORM method="GET" action="xys:">

							    Hello World!<BR>
							    <BR>
							    Between the HTML tag, there is standard HTML code<BR>
							    <BR>
							    <BR>

						    <INPUT type="submit" name="Submit" value="The OK button">

						    </FORM>

						    </HTML>

					 ', "700", "630", "my Windows Title");



Add some HTML code to add some functionality:

Code: Select all

$TextAreaDefault = "One<crlf>Two<crlf>Three";

$myXYVariable = html('<HTML><FORM method="GET" action="xys:">
			    Hello World!<BR>
				<TEXTAREA name="BigTextArea" rows=6 cols=75>' . $TextAreaDefault . '</TEXTAREA><BR>

				<INPUT type="radio" name="myOption" value="Option1" checked>  Option 1 &nbsp; &nbsp;
				<INPUT type="radio" name="myOption" value="Option2"        >  Option 2 <BR> <BR>

				Option5: <input type="text" name="Option5" size="80" Value=""> <BR>
				Option6: <input type="text" name="Option6" size="80" Value=""> <BR>

				<BR><BR><BR>

		    	<INPUT type="submit" name="Submit" value="The OK button">
		    	</FORM></HTML>', "700", "630", "my Windows Title");

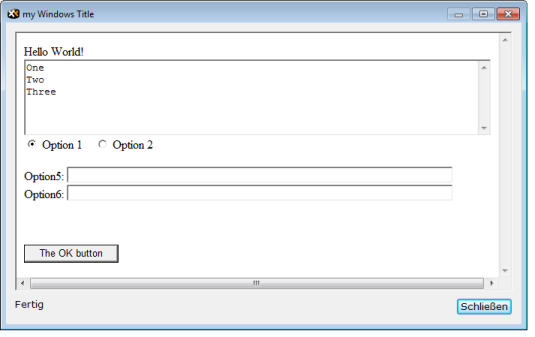

Awaited result (resized):
Add some HTML code to add some functionality:
Add some HTML code to add some functionality:




Work up the result:

Execute the script and enter some data and/or chose one or another option. Then...

1.) Discern between [Cancel] or [Submit] is clicked by user:

Code: Select all

 //####################### // get and work up the results:

   // IF the [Close]-button is pressed instead of the [Submit]-button:
      IF ($myXYVariable==""){
            msg "cancel pressed";
            END 1==1; //quit whole script
      }
  //else
     msg "The command resulted in:<crlf 2>" . $myXYVariable;




  msg "Just a test: i am still here!"; //you will not see this if cancel was clicked.
 //end of script




2.) IF [Submit] button (labelled here with "The OK button") was clicked, we get an return like this:

?BigTextarea=One%0D%0ATwo%0D%0AThree&myOption=Option1&Option5=&Option6=&Submit=The+OK+button


That can be split at the ampersand sign like:
?BigTextarea=One%0D%0ATwo%0D%0AThree
&
myOption=Option1
&
Option5=
&
Option6=
&
Submit=The+OK+button


Lets do that with XYplorer script:

Code: Select all

   //#### Now split the result of $myXYVariable into parts at the '&' sign:

   // split at the '&' sign and give me part No. 1
     $ResultOfTheTextArea = gettoken($myXYVariable, "1", "&");
   // debug test:
     msg "Splitted 1. part at the &:<crlf>" . $ResultOfTheTextArea;




That in return can be split at the equal sign like:
BigTextarea=One%0D%0ATwo%0D%0AThree

myOption=Option1

Option5=

Option6=

Submit=The+OK+button

Lets do that with XYplorer script:

Code: Select all

   // now split this $ResultOfTheTextArea into parts at the '=' sign and give me part No. 2
     $ResultOfTheTextArea = gettoken($ResultOfTheTextArea, "2", "=");
   // debug test:
     msg "That 1. part splitted at the =:<crlf>" . $ResultOfTheTextArea;




// now do this for every part of the result, increasing the part number in the first gettoken() command:
gettoken($myXYVariable, "2", "&");
instead of
gettoken($myXYVariable, "1", "&");


Code: Select all

   // split at the '&' sign and give me part No. 2
     $ResultOfMyOption = gettoken($myXYVariable, "2", "&");
   // debug test:
     msg "Splitted 2. part at the &:<crlf>" . $ResultOfMyOption;

   // now split this $ResultOfTheTextArea into parts at the '=' sign and give me part No. 2
     $ResultOfMyOption = gettoken($ResultOfMyOption, "2", "=");
   // debug test:
     msg "That 2. part splitted at the =:<crlf>" . $ResultOfMyOption;


Now go on and on for each object of your HTML page:

// split at the '&' sign and give me part No. 3
$ResultOfMyOption = gettoken($myXYVariable, "3", "&");
....followed by the rest code as shown above....

// split at the '&' sign and give me part No. 4
$ResultOfMyOption = gettoken($myXYVariable, "4", "&");
....followed by the rest code as shown above....

and so on...





Of course you have to know a fair bit of the HTML language.
But in general, behind the equal sign is what the user have chosen or entered into the HTML form.
And each part of the submitted result was delimited by an ampersand sign.



3.) At the end you have to decide what to do with the result:

Code: Select all

  //#### do something with that result:
    if($ResultOfMyOption=="Option1") {msg "you opt for option 1?";} else {msg "you opt for option 2?";}
Instead of just showing a MsgBox you of course want to do more interesting things, don't you :wink:






END of this little explanation.


########################

Here are the parts of my example script from above in a whole just for your convenience:

Code: Select all

$TextAreaDefault = "One<crlf>Two<crlf>Three";

$myXYVariable = html('<HTML><FORM method="GET" action="xys:">
             Hello World!<BR>
            <TEXTAREA name="BigTextArea" rows=6 cols=75>' . $TextAreaDefault . '</TEXTAREA><BR>

            <INPUT type="radio" name="myOption" value="Option1" checked>  Option 1 &nbsp; &nbsp;
            <INPUT type="radio" name="myOption" value="Option2"        >  Option 2 <BR> <BR>

            Option5: <input type="text" name="Option5" size="80" Value=""> <BR>
            Option6: <input type="text" name="Option6" size="80" Value=""> <BR>

            <BR><BR><BR>

             <INPUT type="submit" name="Submit" value="The OK button">
             </FORM></HTML>', "700", "630", "my Windows Title");


 //####################### // get and work up the results:

   // IF the [Close]-button is pressed instead of the [Submit]-button:
      IF ($myXYVariable==""){
            msg "cancel pressed";
            END 1==1; //quit whole script
      }
  //else
     msg "The command resulted in:<crlf 2>" . $myXYVariable;

  // That is on our test:
  // ?BigTextarea=One%0D%0ATwo%0D%0AThree&myOption=Option1&Option5=&Option6=&Submit=The+OK+button

   //#### Now split the result of $myXYVariable into parts at the '&' sign:

   // split at the '&' sign and give me part No. 1
     $ResultOfTheTextArea = gettoken($myXYVariable, "1", "&");
   // debug test:
     msg "Splitted 1. part at the &:<crlf>" . $ResultOfTheTextArea;

   // now split this $ResultOfTheTextArea into parts at the '=' sign and give me part No. 2
     $ResultOfTheTextArea = gettoken($ResultOfTheTextArea, "2", "=");
   // debug test:
     msg "That 1. part splitted at the =:<crlf>" . $ResultOfTheTextArea;


  //#### now do this for every part of the result, increasing the part number in the first gettoken() command:

   // split at the '&' sign and give me part No. 2
     $ResultOfMyOption = gettoken($myXYVariable, "2", "&");
   // debug test:
     msg "Splitted 2. part at the &:<crlf>" . $ResultOfMyOption;

   // now split this $ResultOfTheTextArea into parts at the '=' sign and give me part No. 2
     $ResultOfMyOption = gettoken($ResultOfMyOption, "2", "=");
   // debug test:
     msg "That 2. part splitted at the =:<crlf>" . $ResultOfMyOption;

  //#### do something with that result:
    if($ResultOfTheTextArea != ""){msg "the area contains " . $ResultOfTheTextArea; // do some work....}
    if($ResultOfMyOption=="Option1") {msg "you opt for option 1?";} else {msg "you opt for option 2?";}


  msg "Just a test: i am still here!"; //you will not see this if cancel was clicked.
 //end of script




- - -


URL Links

To use URL links in your HTML page use the xys advice like:

<a href="xys: myURLone">Execute One</a>

The follow up code to proceed with this is something like:

Code: Select all

 // IF an link is clicked
     IF ($myXYVariable == "myURLone") {
           msg "Link One was pressed";
     }

For example:

Code: Select all

$myXYVariable = html('
                      <HTML>

                      <a href="xys: myURLone">Execute One</a>

                      <FORM method="GET" action="xys:">
                         Hello World!<BR>
                      <INPUT type="submit" name="Submit" value="The OK button">
                      </FORM>

                      </HTML>
                ', "700", "630", "my Windows Title");


   // IF the [Close]-button is pressed instead of the [Submit]-button:
      IF ($myXYVariable==""){
            msg "cancel pressed";
            END 1==1; //quit whole script
      }

   // IF an link is clicked
      IF ($myXYVariable == "myURLone") {

           msg "Link One was pressed";
           // do some work....

      } else {
         //split the result into parts (see above)

           // do some work....
      }


HTH?

SkyFrontier
Posts: 2341
Joined: 04 Jan 2010 14:27
Location: Pasárgada (eu vou!)

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by SkyFrontier »

Thanks very much, Stefan! Will study it tonight.
New User's Ref. Guide and Quick Setup Guide can help a bit! Check XYplorer Resources Index for many useful links!
Want a new XYperience? XY MOD - surfYnXoard
-coz' the aim of computing is to free us to LIVE...

Enternal
Posts: 1174
Joined: 10 Jan 2012 18:26

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by Enternal »

Sorry this is a VERY SIMPLE script but hey, it uses HTML!

Code: Select all

	$EXT = GetPathComponent(<curitem>,"ext");
	$EXT = Recase("$EXT","upper");
	Html("http://filext.com/file-extension/"."$EXT", "85%", "85%", "File Extension Info - "."$EXT");
All is does is open up a nice HTML window to give you more information on the selected file extension.

SkyFrontier
Posts: 2341
Joined: 04 Jan 2010 14:27
Location: Pasárgada (eu vou!)

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by SkyFrontier »

@Enternal:
Thanks - this is also a perfect example (I should have known a time ago for another situation! Damn! lol).

@Stefan:

Great.
It seems I've got the principles. But I'm stuck at this: how do I get a variable correctly processed into the sc html portion?
Using heredoc like in

Code: Select all

 step;
   $tgt = "http://www.xyplorer.com/xyfc/viewtopic.php?f=7&t=10275";

   $a = <<<heredoc
'
                      <HTML>

                      <a href="xys:$tgt">Execute One</a>

                      <FORM method="GET" action="xys:">
                         Hello World!<BR>
                      <INPUT type="submit" name="Submit" value="The OK button">
                      </FORM>

                      </HTML>
                ', "700", "630", "my Windows Title"
heredoc;

 $myXYVariable = html("$a"); // heredoc saved the day - variable wouldn't be processed otherwise!


   // IF the [Close]-button is pressed instead of the [Submit]-button:
      IF ($myXYVariable==""){
            msg "cancel pressed";
            END 1==1; //quit whole script
      }
 step;
   // IF an link is clicked
      IF ($myXYVariable == "$tgt") {

           msg "Link One was pressed";
           // do some work....

      } else {
         //split the result into parts (see above)
    echo "oops!";
           // do some work....
      }
I managed to (is that right? :?:) ensure that $myXYVariable is filled with a valid target.
But
' ', "700", "630", "my Windows Title"' is displayed at the lower portion of the HTML interface
and a " ' ", at the left of the "Execute One". How do I fix that...?
Thank you very much!

-any example on how to work with Initialize/Terminate, Stefan or anyone else...?
New User's Ref. Guide and Quick Setup Guide can help a bit! Check XYplorer Resources Index for many useful links!
Want a new XYperience? XY MOD - surfYnXoard
-coz' the aim of computing is to free us to LIVE...

PeterH
Posts: 2599
Joined: 21 Nov 2005 20:39
Location: Germany

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by PeterH »

I'm afraid that html("$a") only gives one operand to the html-function, while I think you also want to supply width, height and caption?
So I think you should move the latter from inside the heredoc to html($a, 700, 630, "my Windows Title").

(You may add the unneeded quotes again :roll: :D )
W7(x64) SP1 German
( +WXP SP3 )

SkyFrontier
Posts: 2341
Joined: 04 Jan 2010 14:27
Location: Pasárgada (eu vou!)

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by SkyFrontier »

Thank you, PeterH! That solved.
New User's Ref. Guide and Quick Setup Guide can help a bit! Check XYplorer Resources Index for many useful links!
Want a new XYperience? XY MOD - surfYnXoard
-coz' the aim of computing is to free us to LIVE...

PeterH
Posts: 2599
Joined: 21 Nov 2005 20:39
Location: Germany

Re: Script Tutorial Request for sc HTML, INIT/Terminate

Post by PeterH »

SkyFrontier wrote:Thank you, PeterH! That solved.
I'm glad to hear that :D
W7(x64) SP1 German
( +WXP SP3 )

Post Reply
